Antennas & Receivers

  • Antennas and receivers that can significantly improve the performance and reliability of communication systems.


MPANT - Pager Strip Antenna With Coaxial Style Male Plug For Paging Security Systems



  • Pager strip antenna with coaxial style male plug (DIN 41585) (Adhesive tape backing for mounting)

  • Windshield mount PCB strip design (Do not attach to metal, window defrosters, or existing antennas)

  • Used for 4Watt 27MHz paging security systems (No need to use existing car antenna)

  • Compatible with Megapage MP300, MP300V

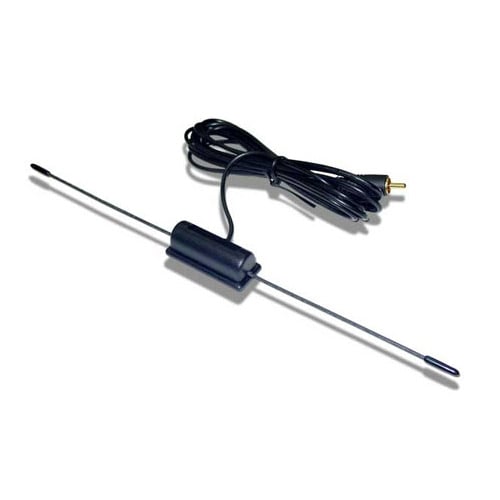

RSANT - Range Extender Antenna With RCA Style Male Plug For Alarm Security Systems



  • Range extender antenna with RCA style male plug (Double sided tape required for mounting antenna)
  • Di-pole long range antenna for maximum optimized range (Mount as high as possible and away from metal)
  • Must be mounted in vertical position and whips following curve of glass (Antenna whips going up and down)
  • For many types of car alarm security and remote start convenience systems (Directly plug into units with RCA style female plug)
  • Plug can be cut for many universal applications (Strip 1/4" of alarm antenna wire and solder to extender center conductor wire)
  • Excess cable wire must be coiled into figure "8" shape for optimal performance (Do not cut any of the excess cable wire)


TPANT - Transponder Ring Antenna With 2-Pin Male Plug For Wireless Immobilizer Security Systems



  • Transponder ring antenna with 2-pin bullet male plug

  • Usually mounted around or behind ignition column

  • Up to six inch tag range depending on installation

  • Used for wireless immobilizer security systems (Plug can be cut for universal applications)

  • Compatible with TP20, TP21, TP22, TP23, TP24, TP25, TP30, TP31, TP32, TP33, TP34, TP35
